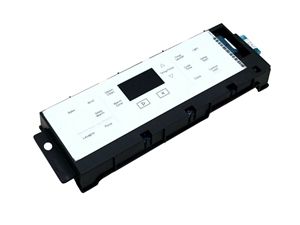

main product photo

Whirlpool W11546066 Range Electronic Control Board

Be the first to review this product
Special Price $215.63 Regular Price $224.95
In stock
Available Quantity:   39
SKU
W11546066

Product Description

The Whirlpool W11546066 Range Electronic Control Board is responsible for controlling the temperature, time and other parameters of the cooking process. This control board receives signals from the input devices and sends signals to the heating elements, display and other integrated systems of the range to enable users to control them with ease. It offers improved usability, as well as dependability of the application. The board is also featured by a high speed of response and energy saving, which makes it quite efficient and affordable.
Add to Wish List
Stove & Oven Parts, Control Boards,
Manufacturer
https://www.hnkparts.com/media/catalog/product/w/1/w11546066_whirlpool_hnkparts.png

This Part Fits the Following Models (3)

Manufacturer Name: WHIRLPOOL
Product Number: W11546066
OEM Part Number: W11546066
Product Description: Cntrl-Elec+Core

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Whirlpool W11546066 Range Electronic Control Board
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool W11546066 Control Board?

Regular inspection for loose connections, moisture exposure, and dust buildup is recommended to ensure accurate range operation. Keep the unit dry and powered down during servicing. Proper handling and periodic checks support preventing electrical faults and maintain consistent control performance and safety.

What are common issues with the Whirlpool W11546066 Control Board?

  • Unresponsive control panel or intermittent operation.
  • Display errors or incorrect temperature readings.
  • Failure to send signals to heating elements.
  • Random resets or power cycling.
  • Buttons not registering or delayed response.

Installation Steps

Step1: Disconnect power to the range at the breaker to avoid electrical shock.

Step2: Remove the back access panel using a proper tool.

Step3: Locate and disconnect wire harnesses from the old control board.

Step4: Remove mounting screws and take out the damaged board.

Step5: Install the new control board and secure it with screws.

Step6: Reconnect all wire harnesses firmly.

Step7: Reattach the access panel, restore power, and test range operations.
