main product photo

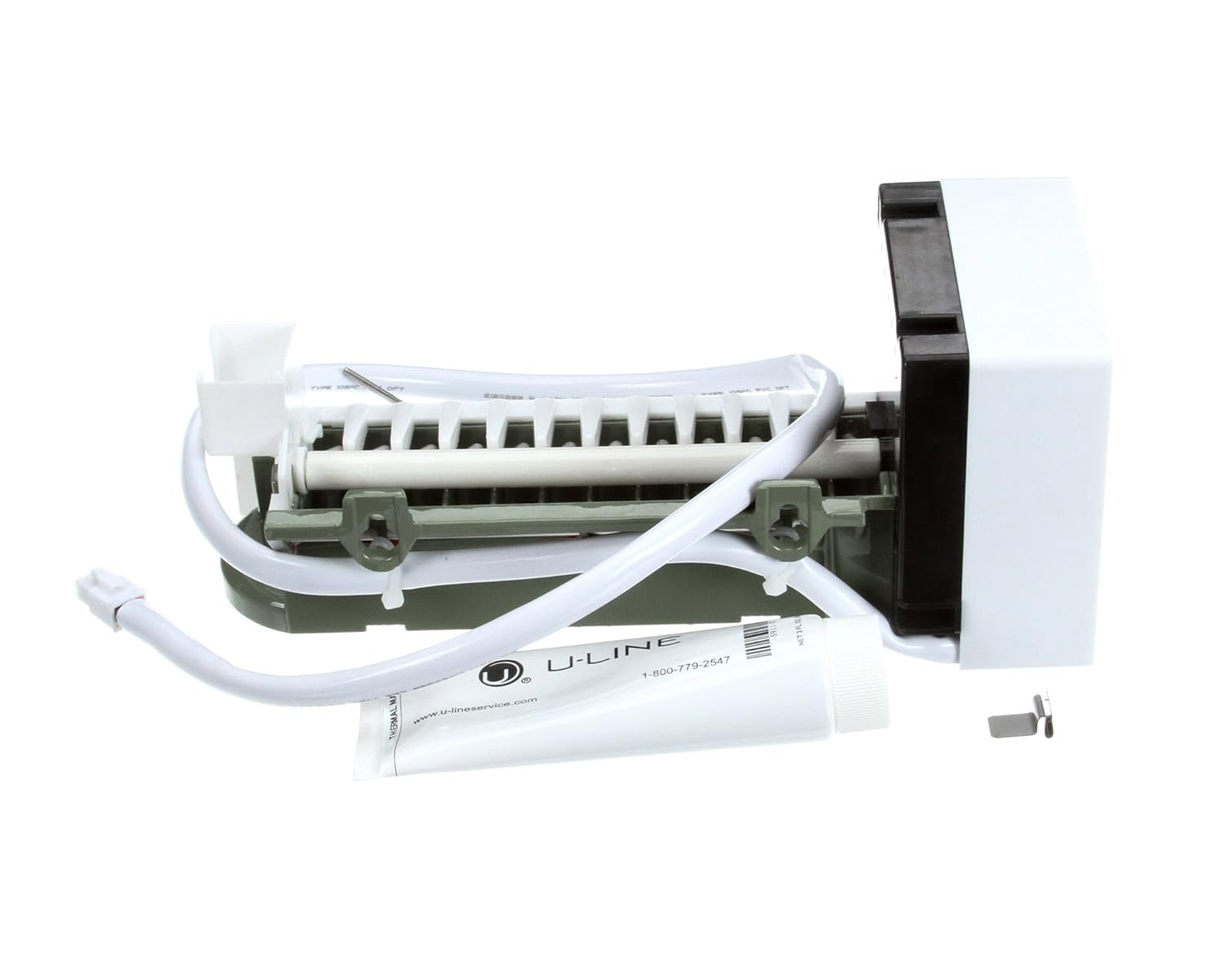

U-Line 80-54372-00 Refrigerator Ice Maker Assembly

Rating:
5 5 7
7 Reviews Add Your Review
Special Price $392.70 Regular Price $460.35
In stock
Available Quantity:   18
SKU
80-54372-00
✓ This Product Replaces: 402-CO29FF, 402-BI2015, 80-54687-00, 67004-02-S, 402-29/1175

Product Description

The U-Line 80-54372-00 Refrigerator Ice Maker Assembly is an ideal product for making ice for everyday use. This assembly is intended for making and storing of ice and can easily fit with other refrigeration systems that are compatible with it. It works through freezing water in a mold, dropping the formed cubes into a storage bin, and then repeating the process when necessary.
Add to Wish List
Refrigerator Parts, Ice Maker Assembly,
Manufacturer
https://www.hnkparts.com/media/catalog/product/8/0/80-54372-00-ice-maker-assembly.jpg

This Part Fits the Following Models (27)

Showing 1-15 of 27

Product Overview:

Provides automatic ice production for the appliance, the U-Line 80-54372-00 Refrigerator Ice Maker Assembly is an OEM component that manages the sequential stages involved in producing and releasing ice. The assembly receives water into the designated ice-forming area, supports the freezing of water into individual ice pieces, and facilitates their release into the applicable collection area.

Water Fill:

The ice maker receives water into the designated ice-forming area during the fill stage, where the water is retained until the required filling sequence is completed. The controlled placement of water within the mold prepares the assembly for the subsequent freezing stage and establishes the volume available for forming individual ice pieces.

Ice Formation:

The assembly retains the supplied water within the designated ice mold while the water freezes into individual ice pieces. The mold maintains the water in defined cavities during the formation stage, allowing each cavity to develop into a separate piece of ice before the completed pieces proceed to the release stage.

Replacement Guidelines:

Replacement of the U-Line 80-54372-00 Refrigerator Ice Maker Assembly may be appropriate when the existing assembly no longer produces ice as intended or has physical damage affecting its operation. The replacement should correspond to the refrigerator's specific application and required part number.

Common Signs of Wear:

  • Reduced or inconsistent ice production.
  • Ice not releasing from the ice-making area.
  • Physical damage to the ice maker assembly.
  • Abnormal operation during the ice-making cycle.

Equipment Compatibility:

The U-Line Refrigerator Ice Maker Assembly is an OEM component listed for compatible U-Line refrigerator models. The applicable refrigerator model should be matched with the 80-54372-00 part number and manufacturer compatibility information before selecting the ice maker assembly.

Technical Specifications:

Brand: U-Line

Part Number: 80-54372-00

Product Type: Ice Maker Assembly

Application: Refrigerator

Reviews 7
Write Your Own Review
You're reviewing:U-Line 80-54372-00 Refrigerator Ice Maker Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the U-Line 80-54372-00 Ice Maker Assembly?

Remove ice periodically and wash the tray and surrounding components with warm water. Ensure connections are tight and water supply lines are clear. Regular cleaning prevents ice clumping and keeps dispensing smooth.

What are common issues with the U-Line 80-54372-00 Ice Maker Assembly?

  • Ice not forming.
  • Ice is falling irregularly.
  • Water is leaking into the tray.
  • Ice jamming in the chute.

What is the U-Line 80-54372-00 used for?

The U-Line 80-54372-00 Refrigerator Ice Maker Assembly is used to produce and release ice within the refrigerator's designated ice-making area.

How does the ice maker support ice production?

The assembly manages the applicable ice-making sequence so water can be formed into ice and the completed ice can be released into the collection area.

What happens if ice does not release from the ice maker mold?

Ice that remains in the mold can interrupt the normal ice-making sequence and reduce or stop the production of newly formed ice pieces.

What can affect the U-Line 80-54372-00 ice maker assembly?

Physical damage, failure to produce ice, inconsistent ice production, or improper ice release can affect the intended operation of the ice maker assembly.

What should be matched before selecting 80-54372-00?

The 80-54372-00 part number and complete U-Line refrigerator model should be matched with the applicable manufacturer parts information before selecting the ice maker assembly.

Installation Steps

Step1: Unplug the refrigerator to prevent electrical shock.

Step2: Turn off the water supply to the ice maker.

Step3: Remove the old ice maker by disconnecting the wiring harness and water line.

Step4: Unscrew the mounting brackets and carefully take out the unit.

Step5: Position the new ice maker assembly and secure it with screws.

Step6: Reconnect the water line and wiring harness.

Step7: Restore water supply and power, then run a test cycle to ensure proper ice production.
