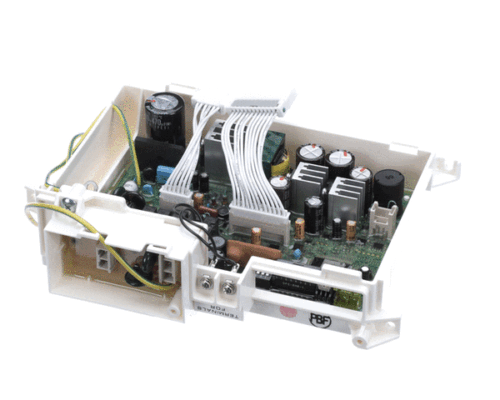

main product photo

Rinnai U245-2260-E-HX01 Water Heater PCB Electric Unit Assembly (700)

Be the first to review this product
Special Price $438.60 Regular Price $535.71
In stock
Available Quantity:   4
SKU
U245-2260-E-HX01

Product Description

The Rinnai U245-2260-E-HX01 Water Heater PCB Electric Unit Assembly is designed to control and regulate the water heating system effectively. It is an electronic component that regulates the temperature, power delivery, and safety functionalities and enhances the performance and dependability of this part. It operates through input signals that control the heating elements and check the state of the system to regulate the temperature of the water and the use of energy.
Add to Wish List
Manufacturer
Manufacturer Name: RINNAI
Product Number: U245-2260-E-HX01
OEM Part Number: U245-2260-E-HX01
Product Description: Pcb, Elec Unit Assy (700)

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Rinnai U245-2260-E-HX01 Water Heater PCB Electric Unit Assembly (700)
Your Rating
FAQS
Customer Questions
What maintenance is required for the Rinnai U245-2260-E-HX01 PCB Electric Unit Assembly?

Keep the PCB dry and free from dust. Wipe gently with a soft cloth. Ensure all wiring remains connected. Operate the water heater under normal conditions to allow accurate temperature control and safe operation.

What are common issues with the Rinnai U245-2260-E-HX01 PCB Electric Unit Assembly?

  • Heater fails to ignite.
  • Error codes appearing.
  • Intermittent water flow or heating issues.
  • Display shows incorrect readings.

Installation Steps

Step1: Turn off power to the water heater to prevent electrical shock.

Step2: Remove the front service panel to access the control compartment.

Step3: Disconnect wiring connectors from the existing PCB assembly.

Step4: Install the new PCB unit and reconnect all wires securely.

Step5: Reattach the panel, restore power, and verify normal heater operation.
