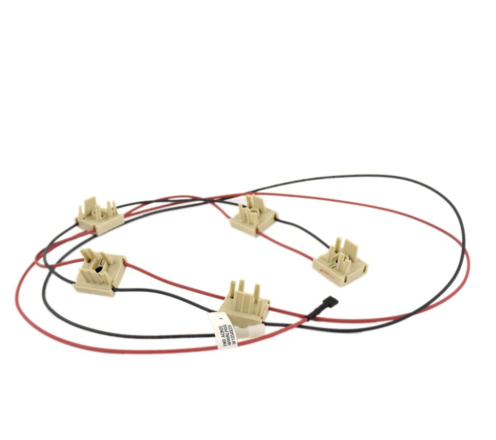

Whirlpool W10836473 Range Wire Harness

SKU: W10836473 4-W10836473 Brand:
WHIRLPOOL
Availability:
In Stock
(1)
$46.76 Price reduced from $54.95
Save $8.19
Have a Question? 866-723-0907
This Product Replaces: W10548356

Description

The Whirlpool W10836473 Range Wire Harness is responsible for providing a proper electrical connection between various parts to ensure proper functioning. It effectively transmits power and signals to enable the proper functioning of the heating elements and controls of the range. This harness ensures that power is distributed evenly hence minimizing on fluctuations that may affect the performance of the appliance and its durability. It is designed to fit compatible models and this makes installation easier and more efficient improving on maintenance and reducing time taken.
Manufacturer Name: WHIRLPOOL
Product Number: W10836473
OEM Part Number: W10836473
Product Description: Harns-Wire

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Step1: Disconnect power and ensure breaker is off; pull range away from wall safely.

Step2: Remove rear panel to access old harness wiring connections carefully and label wires.

Step3: Carefully disconnect old harness noting connector positions and avoid pulling wires.

Step4: Install new harness matching connectors, secure routing, and ensure tight connections.

Step5: Reattach panel, restore power, test burners and controls for proper operation safely.

  • What maintenance is required for the Whirlpool W10836473 Wire Harness?

    Regularly inspect the range wire harness for signs of wear, fraying, or loose connections. Ensure it is free from moisture and debris, secure all terminals properly, and avoid bending wires sharply. Proper handling prevents electrical shorts and ensures safe operation.

  • What are common issues with the Whirlpool W10836473 Wire Harness?

    • Loose or disconnected wires causing intermittent power.
    • Frayed or damaged insulation leading to shorts.
    • Burnt connectors from overheating.
    • Electrical arcing or sparking during operation.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Excellent part
    Joel —

    This Wire Harness was exactly what I needed to fix my range.
