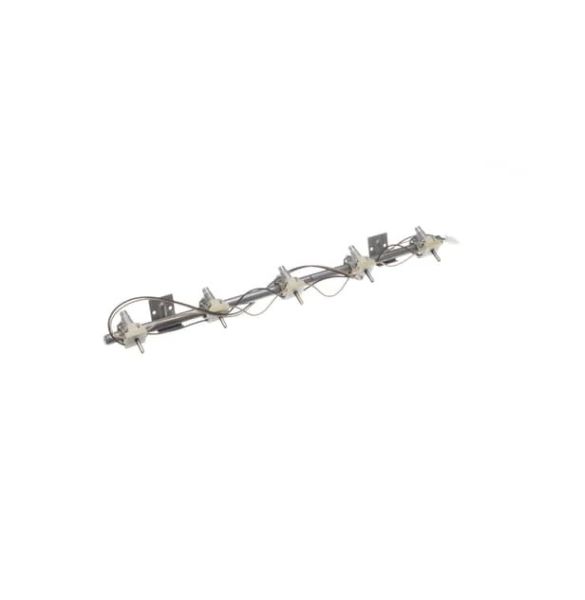

Whirlpool WPW10204705 Range Manifold Assembly

Rating:
5 5 1
1 Review Add Your Review
Special Price $183.11 Regular Price $202.95
In stock
Available Quantity:   21
SKU
WPW10204705

Product Description

The Whirlpool WPW10204705 Surface Burner Manifold Assembly is used to mount the burner knobs to the gas burners, regulates the supply of gas to each burner and also controls the flame by ignition. This assembly functions in a way that when the knobs are turned, releases gas to the burners to maintain a steady heat for cooking and built to withstand damage and provide a longevity and ensure the functionality.
Add to Wish List
Stove & Oven Parts, Heating Elements,
Manufacturer
✓ This Product Replaces: W10204705
https://www.hnkparts.com/media/catalog/product/w/p/wpw10204705-56264.jpg

This Part Fits the Following Models (83)

KitchenAid KGRS505XWH04 Range KitchenAid KGRS505XWH02 Range KitchenAid KGRS505XWH03 Range KitchenAid KGRS505XSS01 Range KitchenAid KGRS505XSS02 Range KitchenAid KGRS505XWH00 Range KitchenAid KGRS505XWH01 Range KitchenAid KGRS505XSS03 Range KitchenAid KGRS505XSS04 Range KitchenAid KGRS505XBL04 Range KitchenAid KGRS505XSS00 Range KitchenAid KGRS505XBL02 Range KitchenAid KGRS505XBL03 Range KitchenAid KGRS505XBL00 Range KitchenAid KGRS505XBL01 Range
Showing 1-15 of 83
Manufacturer Name: WHIRLPOOL
Product Number: WPW10204705
OEM Part Number: WPW10204705
Product Description: Manifold

Choose the best Home Appliance parts and supplies from HnKParts!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)723-0907 or [email protected]

Reviews 1
Write Your Own Review
You're reviewing:Whirlpool WPW10204705 Range Manifold Assembly
Your Rating
FAQS
Customer Questions
What maintenance is required for the Whirlpool WPW10204705 Manifold Assembly?

Inspect the manifold assembly periodically for proper alignment and cleanliness. Ensure gas connections are tight and unobstructed. Verify that burners ignite correctly and distribute heat evenly across the cooktop surface during operation.

What are common issues with the Whirlpool WPW10204705 Manifold Assembly?

  • Burners failing to ignite.
  • Flame distribution uneven.
  • Heat output inconsistent across burners.
  • Cooktop surface not reaching desired temperature.

Installation Steps

Step1: Disconnect the range from the power and gas supply to ensure safety.

Step2: Detach the old manifold assembly, noting gas and burner connections.

Step3: Position the new manifold in place and reconnect all gas lines securely.

Step4: Reattach the cooktop panel and tighten screws.

Step5: Restore power and gas, then test burners for proper ignition and function.
