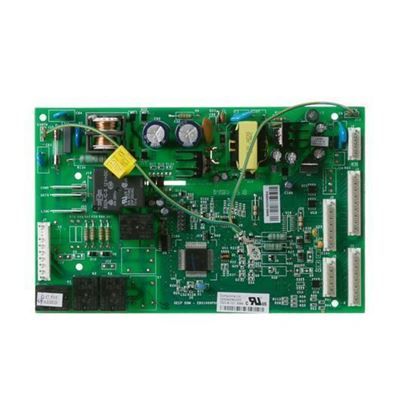

General Electric WR55X11033 Refrigerator Combined HMI Main Board used for the control of several functions of the refrigerator, including temperature control, and has a significant impact on the performance of the appliance. This electronic control board receives inputs from the user and the sensors to regulate the cooling, defrosting and the fan for the preservation of foods. It is durable and has a stable circuit design, thereby improving on its durability and low energy use and maintenance. This main board helps to maintain the cooling performance by optimizing the operations and response time, which is important for the longevity of the refrigeration systems.
A combined HMI main board is an electronic control assembly that brings user-interface functions and broader refrigerator control functions together in one board. The GENERAL ELECTRIC WR55X11033 Refrigerator Combined HMI Main Board is used in specified GE refrigerators to process control inputs, manage electronic signals, and support communication between the user interface and the refrigerator's controlled systems.
HMI Signal Processing:
Electronic circuitry on the board receives inputs from the refrigerator's user interface and connected control circuits. These signals are interpreted by the board's control circuitry and converted into defined electronic commands or information for the appropriate circuits.
Integrated System Coordination:
Communicates user selections and operating information between the HMI and the refrigerator's electronic control system during operation. This combined arrangement allows user commands, control responses, and relevant operating information to be handled through the same electronic control assembly.
Replacement Guidelines:
Replacement of the GENERAL ELECTRIC WR55X11033 Refrigerator HMI Main Board may be appropriate when the existing board no longer provides reliable interface or electronic control functions. The replacement should correspond to the refrigerator's specific application and complete model information.
Common Failure Symptoms:
Refrigerator controls become unresponsive or intermittent.
Display or interface functions do not operate correctly.
Selected refrigerator settings fail to register.
Multiple electronic functions become unavailable.
Refrigerator operation becomes inconsistent.
Equipment Compatibility:
The General Electric WR55X11033 Refrigerator Combined HMI Main Board is designed for use with compatible GE refrigerator models that require this specific replacement part. Compatibility should be confirmed by matching the complete refrigerator model number with WR55X11033 before purchase.
What maintenance is required for the General Electric WR55X11033 Main Combined HMI Board?
Regularly inspect wiring connections to ensure they remain secure and free from corrosion or moisture. Keep the refrigerator surrounding area dry and clean to prevent electrical interference. Avoid power surges by using a surge protector. Always disconnect power before handling the board.
What are common issues with the General Electric WR55X11033 Main Combined HMI Board?
Unresponsive control panel or display errors.
Refrigerator not cooling due to control failure.
Intermittent power or startup problems.
Incorrect temperature regulation.
Failure to communicate with other components.
What is the role of an HMI main board in a refrigerator?
An HMI main board brings user-interface functions and broader refrigerator electronic control functions together in one electronic control assembly.
How does the WR55X11033 process refrigerator control inputs?
The board receives inputs from the user interface and connected control circuits, then its circuitry interprets those signals and converts them into defined electronic commands or information.
Can a faulty HMI main board affect multiple refrigerator functions?
Yes. A problem with the combined assembly can affect user-interface functions, selected settings, display or interface operation, and other electronically controlled refrigerator functions.
What signs can indicate a problem with a refrigerator HMI main board?
Unresponsive or intermittent controls, settings that fail to register, incorrect interface operation, multiple unavailable electronic functions, or inconsistent refrigerator operation can indicate a problem.
How should GE WR55X11033 be matched when replacing the HMI main board?
Match WR55X11033 with the complete refrigerator model information and confirm that the specific application requires this replacement part before purchase.
Installation Steps
Step1: Disconnect refrigerator power supply and wear anti-static protection.
Step2: Remove refrigerator control panel cover carefully.
Step3: Unplug and label wiring from old HMI board.
Step4: Install new board and reconnect connectors securely.
Step5: Reassemble panel and restore power to test operation.
